SF/F/UTP CAT6 Outdoor LAN Cable

产品图

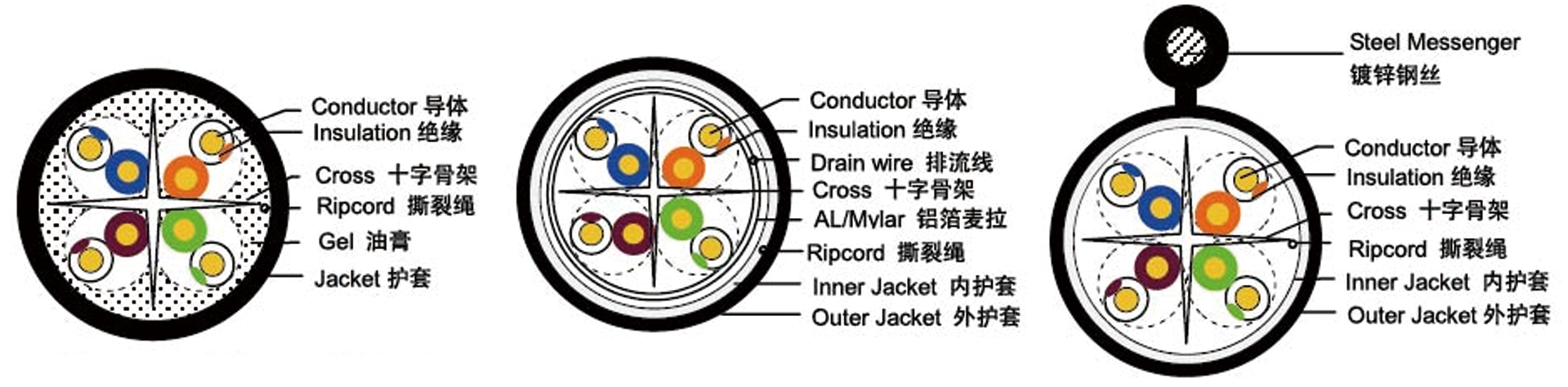

SF/F/UTP CAT6 Outdoor LAN Cable

Standard

  • ■ TIA/EIA-568C
  • ■ ISO/IEC11801
  • ■ IEC61156-5
  • ■ EN50173
  • ■ UL444
  • ■ RoHS 2002/95/EC
Application

  • ■ 10/100 Base -TX(IEEE 802.3)
  • ■ 1000 Base-T (Gigabit Ethernet)
  • ■ 155/622MbpsATM, LSDN
  • ■ 100Mbps TP-PMD
  • ■ Token Ring
Electrical Specification

  • ■ Conductor resistance : Max 9.38 Ohm/100m at 20°C
  • ■ Dielectric strength : 2.5KV - DC/2s
  • ■ Max mutual capacitance : 5.6nF/100m
  • ■ Max capacitance unbalance : 330pF/100m(pair to ground)
  • ■ Min Bending radius : 8×D
  • ■ Working temperatures : -20 ~ 60°C
Specification
